Product Introduction

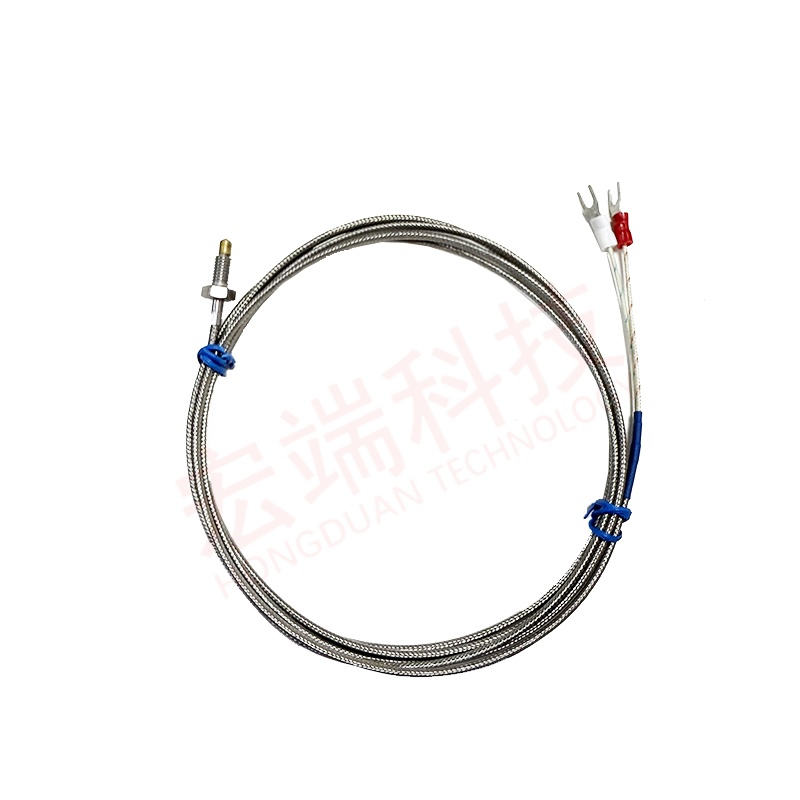

The armored K-type thermocouple produced by Hongduan Technology combined with Japanese technology has the advantages of good linearity, high thermoelectric potential, high sensitivity, good stability and uniformity, strong oxidation resistance, and low price. It can be widely used by users in oxidizing inert atmospheres.

Specifications&Materials

Armor material: SUS316；

Outer diameter of armor: φ1.0，φ1.6、φ2.3、φ3.2、φ4.8、φ6.4、φ8.0；

Minimum bending radius: more than twice the outer diameter of the armor;

Plain line length (m): customized according to customer needs;

Temperature range: 0 ℃~1100 ℃.

Usage&Features

Armored thermocouples have advantages such as bending ability, high temperature resistance, fast thermal response time, and durability.

It is composed of two different metal conductors welded together to form a closed circuit and works using the Seebeck effect principle. When one end of two metals is heated to produce a temperature difference, a thermoelectric potential is generated in the circuit, and the temperature of the measured object can be determined by measuring this thermoelectric potential.
