Product Introduction

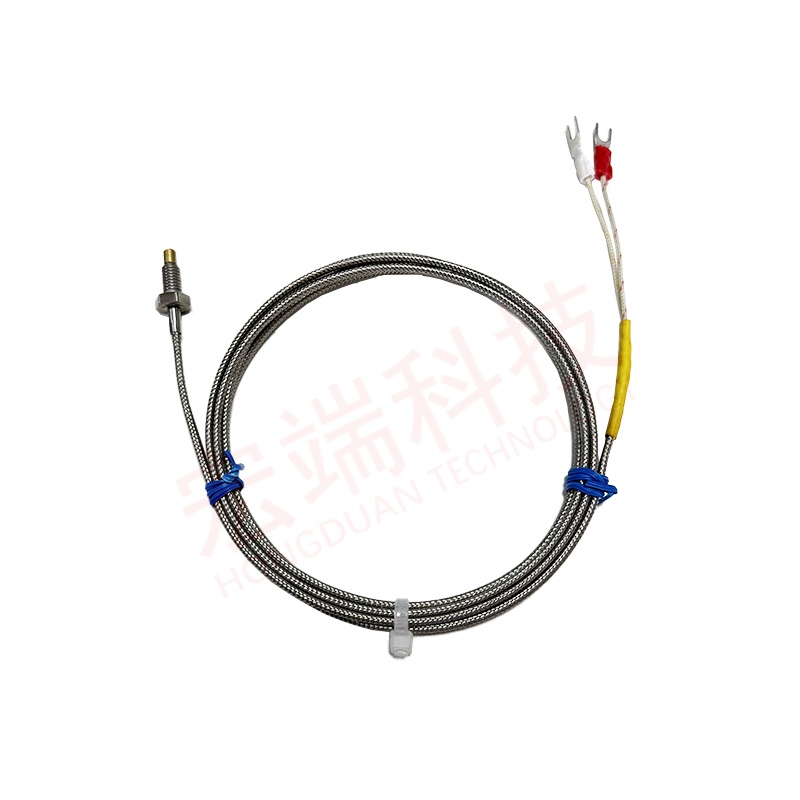

The armored J-type thermocouple produced by Hongduan Technology combined with Japanese technology has the advantages of good linearity, large thermoelectric potential, high sensitivity, good stability and uniformity, and low price, and is widely adopted by users.

Specifications&Materials

Armor material: SUS316；

Outer diameter of armor: φ1.0，φ1.6、φ2.3、φ3.2、φ4.8、φ6.4、φ8.0；

Minimum bending radius: more than twice the outer diameter of the armor;

Plain line length (m): customized according to customer needs;

Temperature range: 0 ℃~600 ℃.

Usage&Features

Armored J-type thermocouple, also known as iron constantan thermocouple, has a positive electrode (JP) mainly composed of pure iron and a negative electrode (JN) made of copper nickel alloy. Armored J-type thermocouples can be used in vacuum, oxidation, reduction, and inert atmospheres, but the positive electrode iron oxidizes quickly at high temperatures, so its use temperature is limited and it cannot be directly used in sulfurization atmospheres at high temperatures without protection.
